1 Getting Started with Erlang

1.1 Introduction

This chapter describes the most common tasks users perform in Erlang/OTP and is intended for readers who are running Erlang/OTP for the first time. It also contains references to more detailed information.

This manual assumes that you have another source of information about how the language Erlang works. The first chapter of the book Concurrent Programming in ERLANG, [Concurrent Programming in ERLANG ], is available online in PDF format.

This manual will describe how to

This manual will also describe differences in development environment on the Unix and Windows platforms.

1.1.1 Manual conventions

The following conventions are used to describe commands, which are entered from the keyboard in the Erlang shell, or on the Emacs command line: window-based

1.2 Working with Erlang

Erlang programs are executed when you instruct the Erlang Runtime System (ERTS) to execute your code. They do not run as binary programs, which can be executed directly by your computer. ERTS consists of an Erlang evaluator and some libraries. The Erlang evaluator is often referred to as an emulator and is very similar to the Java virtual machine.

ERTS together with a number of ready-to-use components and a set of design principles forms the Open Telecom Platform, normally called OTP or Erlang/OTP.

The most central part of the Erlang/OTP development environment is the Erlang shell, erl. erl is available on Unix systems, Windows NT and Windows 95. It looks very similar to a Unix shell, Windows DOS box or a Windows NT Command box. The difference is that the Erlang shell understands how to

In addition to this text-based interface there are several window-based tools like Debugger, Pman and TV.

You can access everything from this command interface but you can also activate the graphic Toolbar where you get buttons to start the window based tools.

1.2.1 Running Erlang/OTP

To start Erlang/OTP on a Unix system you execute in a Unix shell

> erl -s toolbar


On the Windows platform you should find Erlang/OTP in the start menu, use the entry Erlang with Toolbar. If the Erlang/OTP executable is in your execution path you can also start Erlang/OTP from a DOS box or NT command line with

C:\> werl -s toolbar


Note!

On the Windows platform there are two executables, erl and werl. You normally use werl, see the werl reference manual for details.

The following apears on the screen:

Erlang (BEAM) emulator version 5.3 [hipe] [threads:0]

Eshell V5.3  (abort with ^G)
1>


The Erlang shell is now ready for you to type some input. The commands you enter could be any Erlang expression, which is understood by an Erlang shell.

Try it out by typing 1 + 2. followed by pressing the return key (don't forget the terminating dot). You can also call one of the built-in functions, type date().. The result from what you entered should make it look like

Erlang (BEAM) emulator version 5.3 [hipe] [threads:0]

Eshell V5.3  (abort with ^G)
1> 1 + 2.
3
2> date().
{2003,2,11}


The example above can be regarded as having a dialog with the runtime system. You can also run functions or programs, send messages or monitor processes.

To stop Erlang/OTP, enter one of the following commands in the window where Erlang/OTP was started:

  1. Enter the command C-c (press the Control key and the letter c simultaneously).
    This command puts Erlang/OTP into BREAK mode, and the system responds as follows:
    BREAK: (a)bort (c)ontinue (p)roc info (i)nfo (l)oaded
    (v)ersion (k)ill (D)b-tables (d)istribution


    Enter a and then press the Return key to abort Erlang/OTP.
  2. Enter the command halt( ). and then press the Return key.
  3. Enter the command C-g and then press the Return key. This command returns with -->
    press q to quit and then press the Return key to abort Erlang/OTP.

1.2.2 Starting Tools

You can start various tools from the toolbar

starterl_fig4.1
The Toolbar

1.2.3 Compiling a File

This section describes how to compile and run a simple Erlang program, using the Erlang shell. It is assumed that the following program, which calculates the factorial of an integer, has been created with an external editor and saved with the file name math1.erl.

Make sure that you are in the directory, where the program file is stored. Use the command pwd(). to check this and, if needed, change directory by using the command cd(Dir)..

-module(math1).
-export([factorial/1]).
factorial(0) -> 1;
factorial(N) -> N * factorial(N-1).


Follow these steps to compile the program:

  1. Enter the command c(math1)..
    1> c(math1).
    {ok,math1}
    2>


  2. The system returns {ok, math1} if the compilation was successful. If unsuccessful, the compiler prints an error message in the following format:
    math1.erl: line number: error message



Refer to the section Compiling in this chapter for more information about compiling code.

1.2.4 Evaluating an Expression

When a module has been successfully compiled, the exported functions in the module can be evaluated by entering the expression at the Erlang shell prompt, followed by a full stop and a carriage return.

The following example illustrates an evaluation, using the math1.erl program:

Note!

All Erlang expressions must end with a full stop.

1.2.5 Aborting Evaluation of an Expression

Enter C-c. to abort an evaluation (press the Control key and the letter c simultaneously). This action will also terminate an infinite loop.

1.2.6 How to get help

The Erlang language itself is described in the book Concurrent Programming in ERLANG , which is available online in PDF format.

The complete documentation is part of the release in HTML format. The top of the documentation tree is located in the doc directory of the Erlang/OTP installation. It is also available on-line .

From an Unix shell you can access the manual pages for the Erlang/OTP libraries. As an example to display the manual page for the module titled lists you enter

% erl -man lists


You can list the shell commands from the Erlang shell if you enter

1> help().


There is lots of information at the commercial Erlang/OTP site http://www.erlang.se/. and the OpenSource Erlang/OTP site http://www.erlang.org/.

1.3 The Erlang Shell

The Erlang Shell is a program, which provides a front-end to the Erlang evaluator. Edit commands, shell internal commands, and Erlang expressions, which are entered in the shell window, are interpreted by the Erlang evaluator.

In the shell it is possible to:

Depending on your preferred working environment, start Erlang/OTP in one of the following ways:

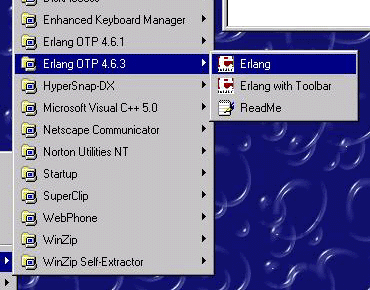

starterl_fig4.2
Erlang/OTP menu on Windows

Apart from evaluation commands and expression, the shell has the following properties:

The shell can run in two separate modes:

1.3.1 Editing Commands

The editing commands are a sub-set of the Emacs line editing commands. These commands are listed in the following table.

Text Editing
Key Sequence Function
C-a Beginning of line
C-b Backward character
M-b Backward word
C-d Delete character
M-d Delete word
C-e End of line
C-f Forward character
M-f Forward word
C-g Enter shell break mode
C-k Kill line
C-l Redraw line
C-n Fetch next line from the history buffer
C-p Fetch previous line from the history buffer
C-t Transpose characters
M-t Transpose words
C-y Insert previously killed text

Note!

The notation C-a means pressing the control key and the letter a simultaneously. M-f means pressing the ESC key followed by the letter f.

The Esc key is also called the Meta key in the Unix environment.

The Tab can be used for completion of module and function names.

1.3.2 Shell Internal Commands

The shell has a number of built-in internal commands. The command help() displays the following commands:

1> help().
** shell internal commands **
b()             -- display all variable bindings
e(N)            -- repeat the expression in query <N>
f()             -- forget all variable bindings
h()             -- history
history(N)      -- set how many old previous commands to keep
results(N)      -- set how many previous command results to keep
v(N)            -- use the value of query <N>
** commands in module c **
bt(Pid)         -- stack backtrace for a process
c(File)         -- compile and load code in <File>
cd(Dir)         -- cd Dir .. example cd("..")
flush()         -- flush any messages sent to the shell
help()          -- help info
i()             -- information about the system
ni()            -- information about the networked system
i(X,Y,X)        -- information about pid <X,Y,Z>
l(File)         -- Load module in <File>
lc([File])      -- Compile a list of Erlang modules
ls()            -- list files in the current directory
ls(Dir)         -- list files in directory <Dir>
m()             -- which modules are loaded
m(Mod)          -- information about module <Mod>
memory()        -- memory allocation information
memory(T)       -- memory allocation information of type <T>
nc(File)        -- compile and load code in <File> on all nodes
nl(File)        -- Load module in <File> on all nodes
pid(X,Y,Z)      -- convert X,Y,Z to a Pid
pwd()           -- print working directory
regs()          -- information about registered processes
nregs()         -- information about all registered processes
xm(M)           -- cross reference check a module
zi()            -- information about the system, including zombies
** commands in module i (interpreter interface) **
ih()            -- print help for the i module
true
2>


When an expression with the format Func(Arg1,Arg2,...,ArgN) is entered, the shell has to determine what Func refers to before the expression can be evaluated. It interprets Func in the following order of priority:

  1. Func refers to a functional object (Fun)
  2. Func refers to a built-in function (BIF)
  3. user_default:Func in the module user_default
  4. shell_default:Func in the module shell_default

1.3.3 Example Dialogue with the Shell

The following is an extended dialogue with the shell. Detailed explanations of the individual commands are included.

host_prompt> erl
Erlang (BEAM) emulator version 5.3 [hipe] [threads:0]

Eshell V5.3  (abort with ^G)
1> Str = "abcd".
"abcd"


Command 1 sets the variable Str to the string "abcd". Remember that "..." is the shorthand for the list of ASCII integers which represents the string.

2> L = length(Str).
4


Command 2 matches the pattern L against the return value of length(Str). Since L is unbound the match succeeds and L is bound to 4.

3> Descriptor = {L, list_to_atom(Str)}.
{4,abcd}


Command 3 binds the value of variable Descriptor to the tuple {4,abcd}.

4> L.
4


Command 4 prints the value of the variable L.

5> b().
Descriptor = {4,abcd}
L = 4
Str = "abcd"
ok


Command 5 evaluates the shell internal command b() (short for bindings). This prints a list of the current shell variables and their bindings.

6> f(L).
ok


Command 6 evaluates the shell internal command f(L) (short for forget) which forgets the value of the variable L .

7> b().
Descriptor = {4,abcd}
Str = "abcd"
ok


Command 7 returns a list of the current variable bindings. The variable L has been forgotten.

8> {L, _} = Descriptor.
{4,abcd}


Command 8 performs a pattern matching operation on Descriptor, binding a new value to L.

9> L.
4


Command 9 evaluates L and prints its value.

10> {P, Q, R} = Descriptor.
** exited: {{badmatch,{4,abcd},{erl_eval,expr,3}} **


Command 10 tries to match {P, Q, R} against Descriptor which is {4, abc}. The match fails and none of the new variables are bound. "** exited: badmatch ... ... **" is printed. This is not the value of the expression, and the expression has no value since its evaluation failed. It is a warning printed by the system to inform you that an error has occurred. The information printed after the word badmatch indicates which term was being matched, and in which function the error occurred. The values of all other variables, such as L and Str are unchanged.

11> P.
** 1: variable 'P' is unbound **

12> Descriptor.
{4,abcd}


Commands 11 and 12 show that P is unbound, as the previous command failed, and Descriptor has not changed.

13> {P, Q} = Descriptor.
{4,abcd}

14> P.
4


Commands 13 and 14 show successful matches, in which P and Q are bound.

15> f().
ok.


Command 15 clears all bindings.

For the next commands we use the module test1 defined in the following way:

-module (test1).
-export ([demo/1]).
demo(X) ->
put(aa, worked),
X = 1,
X + 10.


Compile it with c(test1). and continue with command 16

16> put(aa, hello).
undefined
17> get(aa).
hello


Commands 16 and 17 set and inspect the value of the item aa in the process dictionary.

18> Y = test1:demo(1).
11
19> get().
[{aa, worked}]


Command 18 evaluates test1:demo(1), the evaluation succeeds and the changes made in the process dictionary become visible to the shell. The new value of the dictionary item aa can be seen in command 19.

20> put(aa, hello).
worked
21> Z = test1:demo(2).

=ERROR REPORT==== 19-Feb-2003::10:28:15 ===
Error in process <0.39.0> with exit value: {{badmatch,1},[{test1,demo,1},
{erl_eval,expr,4},{shell,eval_loop,2}]}
** exited: {{badmatch,1},
            [{test1,demo,1},{erl_eval,expr,4},{shell,eval_loop,2}]} **


Commands 20 and 21 reset the value of the dictionary item aa to hello and calls test1:demo(2). The evaluation fails, and the changes made to the dictionary in test1:demo(2) before the error occurred are discarded.

22> Z.
** 1: variable 'Z' is unbound **
23> get(aa).
hello


Commands 22 and 23 show that Z was not bound and that the dictionary item aa retained its original value.

24> erase(), put(aa, hello).
undefined.
25> spawn(test1, demo, [1]).
<0.58.0>
26> get(aa).
hello


Commands 24, 25, and 26 show the effect of evaluating test1:demo(1) in the background. In this case the expression is evaluated in a newly spawned evaluator and any changes made in the process dictionary are local to the newly spawned process and therefore not visible to the shell.

27> io:format("hello hello\n").
hello hello
ok
28> e(27).
hello hello
ok
29> v(27).
ok


Commands 27, 28, and 29 use the history facilities of the shell. Command 28 is e(27), which re-evaluates command 27. Command 29 is v(27) which uses the value (result) of command 27. In the case of a `pure' function, i.e. a function with no side effects, the result is the same. For a function with side effects the result can be different.

In the next command we use the module test2 defined in the following way:

-module (test2).
-export ([loop/1]).

loop(N) ->
io:format('Hello Number:~w\n', [N]),
loop(N+1).


Compile it with c(test2). and continue with command 30.

30> test2:loop(0).
Hello Number:1
Hello Number:2
Hello Number:3
Hello Number:4
Hello Number:5
User switch command
-->


Command 30 evaluates test2:loop(0), which puts the system into an infinite loop. The user typed Control G. This suspends output from the current process, which is in a loop, and enters JCL mode. In JCL mode you can start and stop jobs.

Type q to exit the Erlang shell, then open a new shell and test following commands:

1> F = fun(X) -> 2*X end.
#Fun<erl_eval.6.61343866>
2> F(2).
4


Command 1 binds the variable F to a fun, and command 2 evaluates the expression F(2).

1.3.4 Advanced Shell Usage - Job Control Mode

When the shell starts, it starts a single evaluator process. This process, together with any local processes, which it spawns, is referred to as a job. Only the current job, which is said to be connected, can perform operations using standard I/O. All other jobs, which are said to be detached, will be blocked if they attempt to use standard I/O. Jobs which do not use standard I/O run in the normal way.

Typing Control G detaches the current job, and the shell enters into JCL mode. The prompt changes and looks as follows:

-->


Typing ? at the prompt gives the following help message:

--> ?
c [nn]   - connect to the current job
i [nn]   - interrupt job
k [nn]   - kill job
j        - list all jobs
s        - start new job
r [node] - start a remote shell
q        - quit erlang
? | h    - help


The JCL commands have the following meaning.

The JCL Commands
Command Function
c Connect to the current job. The standard shell will be resumed. Operations, which use standard I/O, will be interleaved with user inputs to the shell.
c [nn] As above, but only for job number nn.
i Interrupt the current job.
i [nn] Interrupt job number [nn].
k Kill the current job. All spawned processes in the job will be killed provided they have not evaluated the group_leader/2 primitive, and provided they are located on the local machine. Processes spawned on remote nodes will not be killed.
k [nn] As above but specifically only for job number nn.
j List all jobs. A list of all known jobs is printed. The current job name is prefixed with `*'.
s Start a new job. This will be assigned a new index [nn], which can be used for referencing.
r [node] Start a remote job on node. This is used in distributed Erlang to allow a shell running on one node to control a number of applications running on a network of nodes.
q Quit Erlang/OTP.
? | h Help.

1.4 Compiling

A file is compiled by evaluating the function

compile:file(File, Options).


File is a file name, and Options is a list of compiler options. Refer to the Reference Manual for a complete list of Options.

You can also enter the command c(File) from the Erlang shell. This command assumes that the following conditions apply:

  1. The module name is the same as the file name, minus the .erl extension.
  2. Code is to be loaded immediately if the compilation succeeds.

The function make:all() can be used to compile many files. All files must be located in the same directory. Refer to the Reference Manual, function make(3) for full details.

1.4.1 Compiler Diagnostics

The Erlang compiler detects a number of different errors. These can be:

The compiler also warns about potential errors.

1.4.1.1 Syntax Errors

Syntax errors are reported against syntactically incorrect Erlang code. For example, the following code fragment is incorrect and will be reported by the compiler as shown:

test(X, Y) ->
    case g(X) o
        Y -> 1;
        2 -> 2
    end.


The syntax word of in the case construction is incorrectly spelt. This produces the compiler diagnostic:

test1.erl: 10 : of expected before `o'


This means that an error occurred in line 10 of the file test1.erl. The message, which follows the line number, describes the error.

1.4.1.2 Variable Errors

Two types of variable errors can be detected by the compiler. Variables can be undefined, or unsafe. In the following example, the variables Y and Z are undefined:

test(X) ->
    A = f(X, Y, Z),
    b(A, X).


When compiled, the following error messages are printed:

./test.erl:11: variable 'Y' is unbound
./test.erl:11: variable 'Z' is unbound


The reason for these errors are that the variables Y and Z are undefined.

The following example shows the use of unsafe variables:

test1(X) ->
    case f(X) of
        true -> Y = 1, Z = 2;
        false -> Y = 2
    end,
    g(Y, Z).


In this example, there are two possible execution paths in the case statement. In one case the variables Y and Z are bound, in the other case only the variable Y is bound. After the case statement, we can only be certain that Y is bound and the variable Z is said to be unsafe. Any subsequent use of Z will result in an unsafe variable error message. In this case the following compiler error is generated:

./test1.erl:9: variable 'Z' is unsafe


If no reference to Z is made after the case statement, the function is correct, as the following example shows:

test2(X) ->
    case f(X) of
        true -> Y = 1, Z = 2;
        false -> Y = 2
    end,
    g(Y).


For both test1 and test2 above, the compiler will issue a warning:

./test1.erl:9: Warning: variable 'Y' exported from ['case']


To avoid this warning and lessen the risk for unsafe variables, write the code like this instead:

test3(X) ->
    Y = case f(X) of
            true -> 1;
            false -> 2
        end,
    g(Y).

1.4.1.3 Missing Functions

The following module contains a missing function:

-module(test).
-export([test/1]).
test(X) -> test_1(X, abc).


When the module is compiled, it results in the following:

> c(test).
./test.erl:3: function test_1/2 undefined
error


1.5 Debugging with Pman

The process manager, Pman, is a tool which traces the evaluation of code. It can trace several different processes, and several different nodes if distributed Erlang is used. Pman is controlled through a simple graphical user interface.

Start Pman as follows:

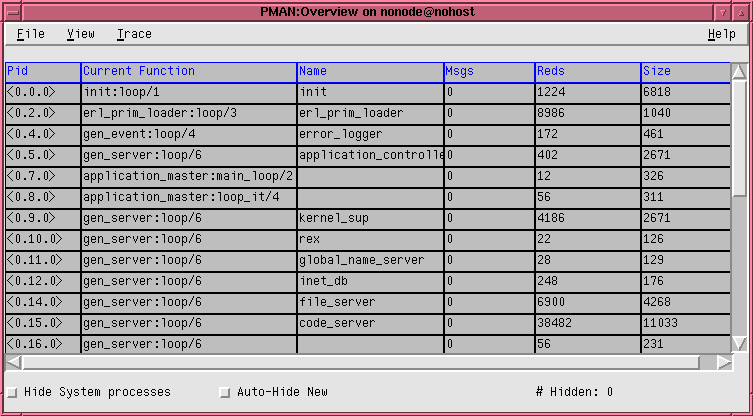

The following window is displayed when starting the Pman:

starterl_fig5
The Pman Window

This section describes a simple debugging example, which involves tracing the code in a single process.

For a more detailed description of Pman see the Pman User's Guide.

1.5.1 Example

We illustrate the use by tracing the evaluation of the function ping_pong:ping, which is defined as follows:

-module(ping_pong).
-export([ping/0, pong/0]).

ping() ->
    Pong = spawn(ping_pong, pong, []),
    Pong ! {self(), ping},
    receive
        pong ->
            pong
    end.

pong() ->
    receive
        {Ping, ping} ->
            Ping ! pong
    end.


Follow these steps to trace this process:

  1. Compile the module.
  2. Select the Shell Process item in the Trace menu of the Pman main window. The window shown in The Shell Tracer Window is displayed.
  3. From the shell tracer window select the Options... item in the File menu. Make sure the Trace send and Trace receive check boxes are selected and click OK.
  4. Evaluate the function ping_pong:ping().
    2> ping_pong:ping().
    pong.


  5. The contents of the shell trace window changes to show a listing of the called functions. See Trace of the function ping_pong:ping().

starterl_fig6
The Shell Tracer Window

starterl_fig7
Trace of the function ping_pong:ping()

1.6 Distributed Erlang

Erlang can be used to write distributed applications, which run simultaneously on several computers. Programming distributed systems with Erlang is the subject of the book Concurrent Programming in ERLANG .

1.6.1 Nodes

A node is a basic concept of distributed Erlang. In a distributed Erlang system, the term node means an executing Erlang runtime system, which can communicate with other Erlang runtime systems. Each node has a name assigned to it, which is returned by the built-in function node(). This name is an atom and is guaranteed to be globally unique. The format of the name can vary between different implementations of Erlang, but it is always an atom which consists of two parts separated by an @ character. The following is an example of a node name:

dilbert@super.du.ericsson.se


Before we can fully account for the structure of a node name, we have to consider how host names are specified.

1.6.1.1 Host Names

Every host, which is attached to a network, has an IP address. However, it is not practical to use IP addresses when referring to hosts, since they are made up of numeric strings, which are difficult to remember. For this reason, hosts are usually given names.

Host names of hosts, which are connected to the Internet, are organized into domains. Domains are built hierarchically, with "top level" domains and "sub-domains". For example, the domain denoted by du.etx.ericsson.se is a sub-domain, which is part of another sub-domain etx.ericsson.se, which is part of the top domain se.

When it is clear from the context what domain a host belongs to, it is not necessary to use the fully qualified host name. In the example super.du.ext.ericsson.se, the first part "super" will suffice. We refer to "super" as the short host name of the host.

Hosts which are not connected to the Internet, and do not belong to any particular domain, are simply referred to by their short host name, "super" for example.

We use the term host name to denote the name of hosts. It should be clear from the context if we mean the long or the short form of the name.

1.6.1.2 Node Names

An Erlang node name is an atom constructed as the concatenation of a name supplied by the user, the @ character, and the name of the host where the Erlang runtime system is executed. For example:

dilbert@super.du.etx.ericsson.se


In this example, "dilbert" is the name of the Erlang node, and "super.du.etx.ericsson.se" is the name of the host where Erlang is running.

Distributed Erlang requires host names to be unique, since Erlang nodes identify each other by node names. We can achieve uniqueness for host names either by using long host names, or using short host names with the additional requirement that communicating hosts belong to the same domain (or a network not connected to Internet).

When using long host names, the corresponding node names are called long node names. For example:

dilbert@super.du.etx.ericsson.se


In this case, distributed Erlang is started with the -name flag. The system checks that the host name part of the node name contains at least one dot (.). If not, the host name is considered to be in error.

Similarly, when using short host names, the corresponding node names are called short node names. For example:

dilbert@super


In this case, distributed Erlang is started with the -sname flag.

Note!

An Erlang started with a long node name cannot communicate with a node started with a short node name.

It is often clear from the context if a node name is long or short. When this is the case, we use the term node name to refer to a node (the name of which may be short or long).

The first part of a node name which comes before the @ character is the plain name of the node. The plain name for a node is unique within the host on which the node is running. When starting distributed Erlang, with either the -name or the -sname flag, the plain name of the node is provided by the user. The other part of the node name, which is the host name part, is added by the Erlang runtime system at start-up.

1.6.2 Start-Up

Execute the following command to start a distributed Erlang node:

% erl -name foobar
Erlang (BEAM) emulator version 5.3 [hipe] [threads:0]

Eshell V5.3  (abort with ^G)
(foobar@super.eua.ericsson.se)1>


The node name shown in the system response, includes the long name for the host. An alternative way is to start the system with the -sname flag. This is sometimes the only way to run distributed Erlang if the Domain Name System (DNS) is not running, or is not available.

1.6.3 Distribution Script Flags

The executable script erl starts the Erlang runtime system. Refer to erl(1), for a complete list of the flags, which can be added to the start script. This section describes some of the flags, which control the distribution:

1.6.4 Security

Erlang nodes are protected by a magic cookie system. Refer to auth(3) for detailed information about the magic cookie system.

  1. When a message is sent from one node to another node, the sending node attaches the magic cookie of the receiving node to the message.
  2. The runtime system on the receiving node verifies that the magic cookie is the correct one for this node.
  3. If the magic cookie is correct, the message is accepted. If the magic cookie is not correct, then the message is handled as follows:

Magic cookies are assigned to a node as follows:

  1. Initially, each node is assigned a random atom as its magic cookie, and each node assumes the atom nocookie for all other nodes.
  2. When the standard auth server is started without the -setcookie flag, it reads a file named $HOME/.erlang.cookie. If the file $HOME/.erlang.cookie does not exist, it is created with a random string as its content. The permission mode of the file is set to read-only by owner.
  3. The system creates an atom from the contents of this file and the function erlang:set_cookie(node(), CookieAtom) sets the magic cookie for the node to the value of this atom.

An Erlang node is completely unprotected when running erlang:set_cookie(node(), nocookie). This can sometimes be appropriate for systems that are not normally networked, or for systems which are run for maintenance purposes only. Refer to auth(3) for details on the security system.

1.6.5 Slave Nodes

The Erlang/OTP library module slave provides functionality to start or control slave nodes. This functionality is Unix specific.

The remote nodes are started by means of the Unix command rsh. However, to use this command, the user must not only use a Unix system, but must also be allowed to rsh to the remote hosts without being prompted for a password.

Refer to the following manuals for additional information:

1.7 Configuration

The standard Erlang/OTP system can be re-configured to change the default behavior on start-up.

1.7.1 The .erlang Start-up File

When Erlang/OTP is started, the system searches for a file named .erlang in the directory where Erlang/OTP is started. If not found, the user's home directory is searched for an .erlang file.

If an .erlang file is found, it is assumed to contain valid Erlang expressions. These expressions are evaluated as if they were input to the shell.

A typical .erlang file contains a set of search paths, for example:

io:format("executing user profile in HOME/.erlang\n",[]).
code:add_path("/home/calvin/test/ebin").
code:add_path("/home/hobbes/bigappl-1.2/ebin").
io:format(".erlang rc finished\n",[]).


1.7.2 user_default and shell_default

Functions in the shell which are not prefixed by a module name are assumed to be functional objects (Funs), built-in functions (BIFs), or belong to the module user_default or shell_default.

To include private shell commands, define them in a module user_default and add the following argument as the first line in the .erlang file.

code:load_abs("..../user_default").


1.7.3 erl

If the contents of .erlang are changed and a private version of user_default is defined, it is possible to customize the Erlang/OTP environment. More powerful changes can be made by supplying command line arguments in the start-up script erl. Refer to erl(1) and init(3) for further information.


Copyright © 1991-2006 Ericsson AB
