Decentralized ETS Counters for Better Scalability

August 03, 2021 · by Kjell Winblad

A shared Erlang Term Storage (ETS) table is often an excellent place to store data that is updated and read from multiple Erlang processes frequently. ETS provides key-value stores to Erlang processes. When the write_concurrency option is activated, ETS tables use fine-grained locking internally. Therefore, a scenario where multiple processes insert and remove different items in an ETS table should scale well with the number of utilized cores. However, in practice the scalability for such scenarios is not yet perfect. This blog post will explore how the decentralized_counters option brings us one step closer to perfect scalability.

The ETS table option decentralized_counters (introduced in Erlang/OTP 22 for ordered_set tables and in Erlang/OTP 23 for the other table types) has made the scalability much better. A table with decentralized_counters activated uses decentralized counters instead of centralized counters to track the number of items in the table and the memory consumption. Unfortunately, tables with decentralized_counters activated will have slow operations to get the table size and memory usage (ets:info(Table, size) and ets:info(Table, memory)), so whether it is beneficial to turn decentralized_counters on or off depends on your use case. This blog post will give you a better understanding of when one should activate the decentralized_counters option and how the decentralized counters work.

Scalability with Decentralized ETS Counters #

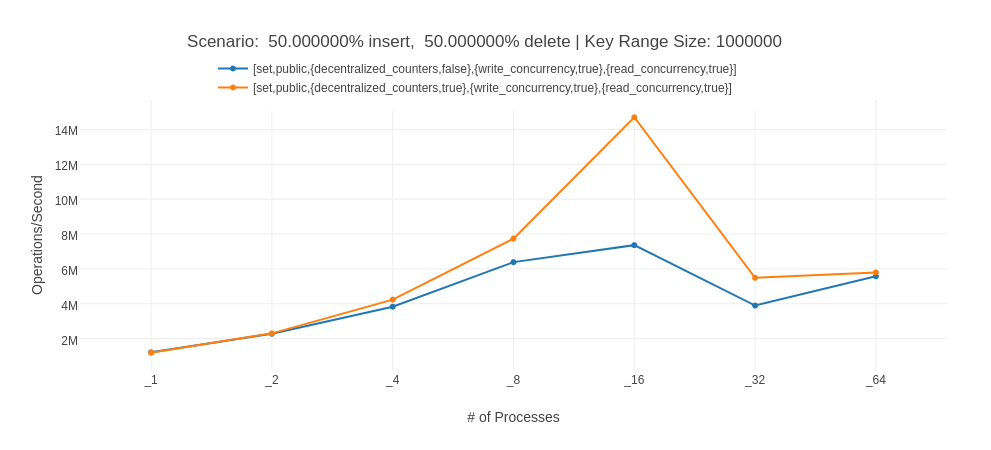

The following figure shows the throughput (operations/second) achieved when processes are doing inserts (ets:insert/2) and deletes (ets:delete/2) to an ETS table of the set type on a machine with 64 hardware threads both when decentralized_counters option is activated and when it is deactivated. The table types bag and duplicate_bag have similar scalability behavior as their implementation is based on the same hash table.

alt text

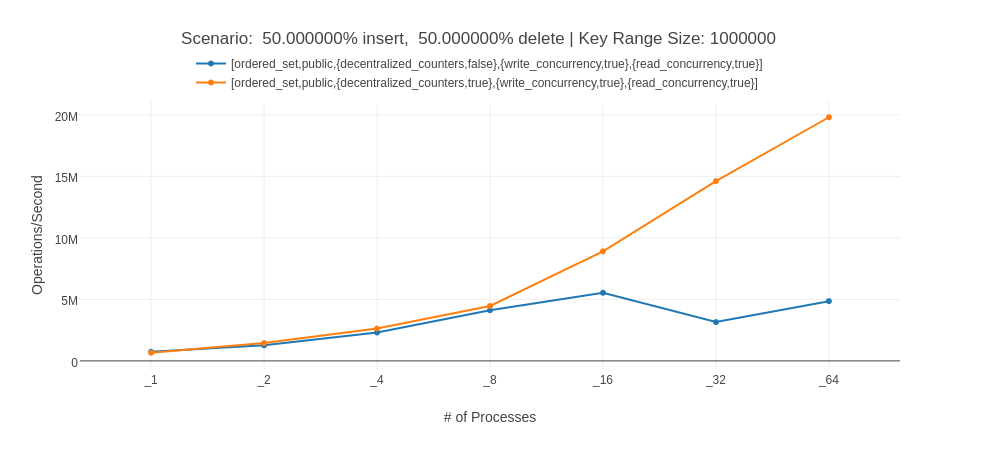

The following figure shows the results for the same benchmark but with a table of type ordered_set:

alt text

The interested reader can find more information about the benchmark at the benchmark website for decentralized_counters. The benchmark results above show that both set and ordered_set tables get a significant scalability boost when the decentralized_counter option is activated. The ordered_set type receives a more substantial scalability improvement than the set type. Tables of the set type have a fixed number of locks for the hash table buckets. The ordered_set table type is implemented with a contention adapting search tree that dynamically changes the locking granularity based on how much contention is detected. This implementation difference explains the difference in scalability between set and ordered_set. The interested reader can find details about the ordered_set implementation in an earlier blog post.

Worth noting is also that the Erlang VM that ran the benchmarks has been compiled with the configure option “./configure --with-ets-write-concurrency-locks=256”. The configure option --with-ets-write-concurrency-locks=256 changes the number of locks for hash-based ETS tables from the current default of 64 to 256 (256 is currently the max value one can set this configuration option to). Changing the implementation of the hash-based tables so that one can set the number of locks per table instance or so that the lock granularity is adjusted automatically seems like an excellent future improvement, but this is not what this blog post is about.

A centralized counter consists of a single memory word that is incremented and decremented with atomic instructions. The problem with a centralized counter is that modifications of the counter by multiple cores are serialized. This problem is amplified because frequent modifications of a single memory word by multiple cores cause a lot of expensive traffic in the cache coherence system. However, reading from a centralized counter is quite efficient as the reader only has to read a single memory word.

When designing the decentralized counters for ETS, we have tried to optimize for update performance and scalability as most applications need to get the size of an ETS table relatively rarely. However, since there may be applications out in the wild that frequently call ets:info(Table, size) and ets:info(Table, memory), we have chosen to make decentralized counters optional.

Another thing that might be worth keeping in mind is that the hash-based tables that use decentralized counters tend to use slightly more hash table buckets than the corresponding tables without decentralized counters. The reason for this is that, with decentralized counters activated, the resizing decision is based on an estimate of the number of items in the table rather than an exact count, and the resizing heuristics trigger an increase of the number of buckets more eagerly than a decrease.

Implementation #

You will now learn how the decentralized counters in ETS works. The decentralized counter implementation exports an API that makes it easy to swap between a decentralized counter and a centralized one. ETS uses this to support the usage of both centralized and decentralized counters. The data structure for the decentralized counter is illustrated in the following picture. When is_decentralized = false, the counter field represents the current count instead of a pointer to an array of cache line padded counters.

alt text

When is_decentralized = true, processes that update (increment or decrement) the counter follow the pointer to the array of counters and increments the counter at the slot in the array that the current scheduler maps to (one takes the scheduler identifier modulo the number of slots in the array to get the appropriate slot). Updates do not need to do anything else, so they are very efficient and can scale perfectly with the number of cores as long as there are as many slots as schedulers. One can configure the maximum number of slots in the array of counters with the +dcg option.

To implement the ets:info(Table, size) and ets:info(Table, memory) operations, one also needs to read the current counter value. Reading the current counter value can be implemented by taking the sum of the values in the counter array. However, if this summation is done concurrently with updates to the array of counters, we could get strange results. For example, we could end up in a situation where ets:info(Table, size) returns a negative number, which is not exactly what we want. On the other hand, we want to make counter updates as fast as possible so having locks to protect the counters in the counter array is not a good solution. We opted for a solution that lets readers swap out the entire counter array and wait (using the Erlang VM’s thread progress system) until no updates can occur in the swapped-out array before the sum is calculated. The following example illustrates this approach:

  • [Step 1]

    A thread is going to read the counter value.

    alt text

  • [Step 2]

    The reader starts by creating a new counter array.

    alt text

  • [Step 3]

    The pointer to the old counter array is changed to point to the new one with the snapshot_ongoing field set to true. This change can only be done when the snapshot_onging field is set to false in the old counter array.

    alt text

  • [Step 4]

    Now, the reader has to wait until all other threads that will update a counter in the old array have completed their updates. As mentioned, this can be done using the Erlang VM’s thread progress system. After that, the reader can safely calculate the sum of counters in the old counter array (the sum is 1406). The calculated sum is also given to the process that requested the count so that it can continue execution.

    alt text

  • [Step 5]

    The read operation is not done, even though we have successfully calculated a count. One must add the calculated sum from the old array to the new array to avoid losing something.

    alt text

  • [Step 6]

    Finally, the snapshot_ongoing field in the new counter array is set to false so that other read operations can swap out the new counter array.

    alt text

Now, you should have got a basic understanding of how ETS’ decentralized counters work. You are also welcome to look at the source code in erl_flxctr.c and erl_flxctr.h if you are interested in details of the implementation.

As you can imagine, reading the value of a decentralized counter with, for example, ets:info(Table, size) is extremely slow compared to a centralized counter. Fortunately, most time that is spent reading the value of a decentralized counter is spent waiting for the thread progress system to report that it is safe to read the swapped-out array, and the read operation does not block any scheduler and does not consume any CPU time during this time. On the other hand, the decentralized counter can be updated in a very efficient and scalable way, so using decentralized counters is most likely to prefer, if you seldom need to get the size and the memory consumed by your shared ETS table.

Concluding Remarks #

This blog post has described the implementation of the decentralized counter option for ETS tables. ETS tables with decentralized counters scale much better with the number of cores than ETS tables with centralized counters. However, as decentralized counters make ets:info(Table, size) and ets:info(Table, memory) very slow, one should not use them if any of these two operations need to be performed frequently.
