12 Definition of Agent Net if

IMAGE MISSING

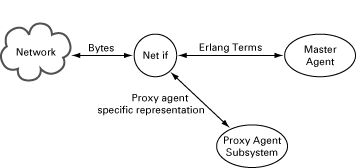

Figure 12.1:   The Purpose of Agent Net if

The Network Interface (Net if) process delivers SNMP PDUs to a master agent, and receives SNMP PDUs from the master agent. The most common behaviour of a Net if process is that is receives bytes from a network, decodes them into an SNMP PDU, which it sends to a master agent. When the master agent has processed the PDU, it sends a response PDU to the Net if process, which encodes the PDU into bytes and transmits the bytes onto the network.

However, that simple behaviour can be modified in numerous ways. For example, the Net if process can apply some kind of encrypting/decrypting scheme on the bytes or act as a proxy filter, which sends some packets to a proxy agent and some packets to the master agent.

It is also possible to write your own Net if process. The default Net if process is implemented in the module snmpa_net_if and it uses UDP as the transport protocol i.e the transport domains transportDomainUdpIpv4 and/or transportDomainUdpIpv6.

This section describes how to write a Net if process.

12.1  Mandatory Functions

A Net if process must implement the SNMP agent network interface behaviour.

12.2  Messages

The section Messages describes mandatory messages, which Net if must send and be able to receive.

In this section an Address field is a {Domain, Addr} tuple where Domain is transportDomainUdpIpv4 or transportDomainUdpIpv4, and Addr is an {IpAddr,IpPort} tuple.

Outgoing Messages

Net if must send the following message when it receives an SNMP PDU from the network that is aimed for the MasterAgent:

MasterAgent ! {snmp_pdu, Vsn, Pdu, PduMS, ACMData, From, Extra}

  • Vsn is either 'version-1', 'version-2', or 'version-3'.
  • Pdu is an SNMP PDU record, as defined in snmp_types.hrl, with the SNMP request.
  • PduMS is the Maximum Size of the response Pdu allowed. Normally this is returned from snmpa_mpd:process_packet (see Reference Manual).
  • ACMData is data used by the Access Control Module in use. Normally this is returned from snmpa_mpd:process_packet (see Reference Manual).
  • From is the source Address.
  • Extra is any term the Net if process wishes to send to the agent. This term can be retrieved by the instrumentation functions by calling snmp:current_net_if_data(). This data is also sent back to the Net if process when the agent generates a response to the request.

The following message is used to report that a response to a request has been received. The only request an agent can send is an Inform-Request.

Pid ! {snmp_response_received, Vsn, Pdu, From}

  • Pid is the Process that waits for the response for the request. The Pid was specified in the send_pdu_req message (see below).
  • Vsn is either 'version-1', 'version-2', or 'version-3'.
  • Pdu is the SNMP Pdu received
  • From is the source Address.

Incoming Messages

This section describes the incoming messages which a Net if process must be able to receive.

  • {snmp_response, Vsn, Pdu, Type, ACMData, To, Extra}

    This message is sent to the Net if process from a master agent as a response to a previously received request.

    • Vsn is either 'version-1', 'version-2', or 'version-3'.

    • Pdu is an SNMP PDU record (as defined in snmp_types.hrl) with the SNMP response.

    • Type is the #pdu.type of the original request.

    • ACMData is data used by the Access Control Module in use. Normally this is just sent to snmpa_mpd:generate_response_message (see Reference Manual).

    • To is the destination Address that comes from the From field in the corresponding snmp_pdu message previously sent to the MasterAgent.

    • Extra is the term that the Net if process sent to the agent when the request was sent to the agent.

  • {discarded_pdu, Vsn, ReqId, ACMData, Variable, Extra}

    This message is sent from a master agent if it for some reason decided to discard the pdu.

    • Vsn is either 'version-1', 'version-2', or 'version-3'.

    • ReqId is the request id of the original request.

    • ACMData is data used by the Access Control Module in use. Normally this is just sent to snmpa_mpd:generate_response_message (see Reference Manual).

    • Variable is the name of an snmp counter that represents the error, e.g. snmpInBadCommunityUses.

    • Extra is the term that the Net if process sent to the agent when the request was sent to the agent.

  • {send_pdu, Vsn, Pdu, MsgData, To, Extra}

    This message is sent from a master agent when a trap is to be sent.

    • Vsn is either 'version-1', 'version-2', or 'version-3'.

    • Pdu is an SNMP PDU record (as defined in snmp_types.hrl) with the SNMP response.

    • MsgData is the message specific data used in the SNMP message. This value is normally sent to snmpa_mpd:generate_message/4. In SNMPv1 and SNMPv2c, this message data is the community string. In SNMPv3, it is the context information.

    • To is a list of {Address, SecData} tuples i.e the destination addresses and their corresponding security parameters. This value is normally sent to snmpa_mpd:generate_message/4.

    • Extra is any term that the notification sender wishes to pass to the Net if process when sending a notification (see send notification for more info).

  • {send_pdu_req, Vsn, Pdu, MsgData, To, Pid, Extra}

    This message is sent from a master agent when a request is to be sent. The only request an agent can send is Inform-Request. The net if process needs to remember the request id and the Pid, and when a response is received for the request id, send it to Pid, using a snmp_response_received message.

    • Vsn is either 'version-1', 'version-2', or 'version-3'.

    • Pdu is an SNMP PDU record (as defined in snmp_types.hrl) with the SNMP response.

    • MsgData is the message specific data used in the SNMP message. This value is normally sent to snmpa_mpd:generate_message/4. In SNMPv1 and SNMPv2c, this message data is the community string. In SNMPv3, it is the context information.

    • To is a list of {Address, SecData} tuples i.e the destination addresses and their corresponding security parameters. This value is normally sent to snmpa_mpd:generate_message/4.

    • Pid is a process identifier.

    • Extra is any term that the notification sender wishes to pass to the Net if process when sending a notification (see send notification for more info).

Notes

Since the Net if process is responsible for encoding and decoding of SNMP messages, it must also update the relevant counters in the SNMP group in MIB-II. It can use the functions in the module snmpa_mpd for this purpose (refer to the Reference Manual, section snmp, module snmpa_mpd for more details.)

There are also some useful functions for encoding and decoding of SNMP messages in the module snmp_pdus.
